aluminium ferrule
unit/mm

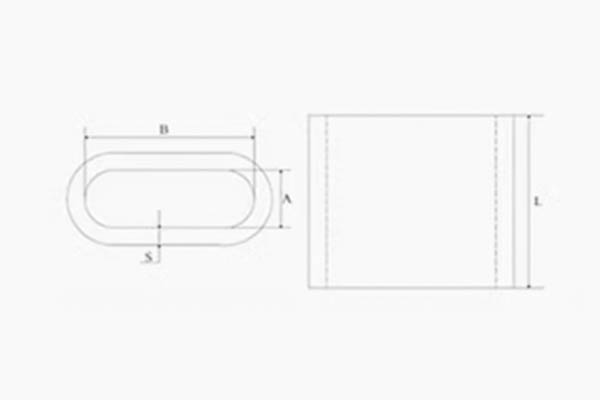

| Product Name | Model | A | B | S | L | Weight/100pcs |
| (mm) | (mm) | (mm) | (mm) | (KG) | ||
| 橢圓鋁套 Aluminium Ferrule | M0.5 | 1.00 | 1.76 | 0.60 | 3.54 | 0.041 |
| M0.8 | 1.20 | 2.02 | 0.72 | 5.02 | 0.070 | |
| M1 | 1.44 | 2.54 | 0.72 | 5.00 | 0.080 | |
| M1.2 | 1.60 | 3.04 | 0.74 | 6.00 | 0.111 | |
| M1.5 | 1.76 | 3.38 | 0.70 | 7.00 | 0.132 | |
| M2 | 2.28 | 4.22 | 1.00 | 7.50 | 0.293 | |
| M2.5 | 2.68 | 5.40 | 1.18 | 10.00 | 0.455 | |
| M3 | 3.30 | 6.60 | 1.26 | 11.10 | 0.710 | |
| M4 | 4.56 | 8.62 | 1.58 | 13.70 | 1.815 | |
| M5 | 5.30 | 10.80 | 2.20 | 18.06 | 3.529 | |
| M6 | 6.70 | 13.16 | 2.52 | 21.10 | 5.848 | |
| M8 | 9.70 | 17.62 | 3.40 | 28.14 | 13.860 | |
| M10 | 10.90 | 21.70 | 4.30 | 35.30 | 27.280 | |
| M11 | 12.20 | 23.97 | 4.47 | 39.28 | 35.400 | |
| M12 | 13.40 | 26.28 | 4.80 | 42.32 | 42.310 | |
| M13 | 14.22 | 28.12 | 5.46 | 46.24 | 60.130 | |
| M14 | 15.62 | 30.70 | 5.70 | 50.00 | 71.400 | |
| M16 | 17.60 | 34.90 | 6.00 | 56.36 | 114.000 | |
| M18 | 19.64 | 38.17 | 7.62 | 62.47 | 159.000 | |
| M2O | 21.46 | 42.29 | 8.40 | 70.52 | 217.500 | |
| M22 | 24.22 | 47.35 | 9.42 | 77.69 | 304.700 | |
| M24 | 25.85 | 52.27 | 10.00 | 83.98 | 376.100 |

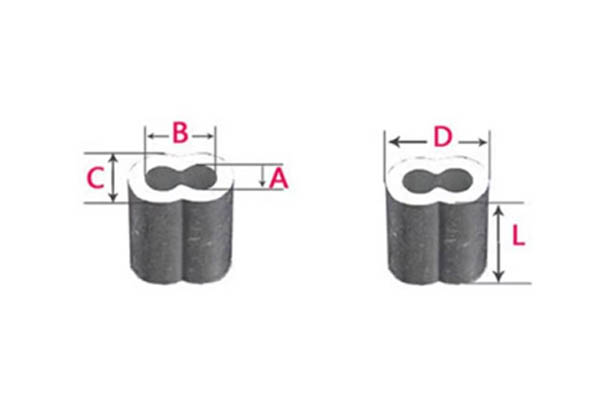

| Product Name | Model | A | B | C | D | L | Weight/100pcs |
| (mm) | (mm) | (mm) | (mm) | (mm) | (KG) | ||
| 雙孔鋁套 Aluminium Ferrule | M1.2 | 1.6 | 3.12 | 3.80 | 5.20 | 10.00 | 0.268 |
| M1.5 | 2.06 | 4.02 | 4.26 | 6.14 | 10.00 | 0.332 | |
| M2 | 2.52 | 4.90 | 5.00 | 7.54 | 10.02 | 0.482 | |
| M2.5 | 2.90 | 6.00 | 6.22 | 9.44 | 12.10 | 1.095 | |
| M3 | 3.7 | 7.38 | 7.60 | 11.24 | 15.16 | 1.868 | |
| M4 | 4.86 | 10.72 | 8.94 | 13.76 | 16.00 | 2.503 | |
| M5 | 5.70 | 11.54 | 10.22 | 16.02 | 22.04 | 5.367 | |
| M6 | 6.84 | 13.80 | 11.64 | 18.70 | 26.00 | 7.1 | |
| M8 | 10.12 | 19.10 | 17.40 | 27.02 | 31.96 | 20.7 | |
| M10 | 11.82 | 22.00 | 20.20 | 30.42 | 36.62 | 28.1 | |
| M12 | 13.62 | 27.40 | 22.06 | 36.06 | 38.00 | 35.6 | |
| M16 | 17.66 | 35.18 | 31.70 | 49.31 | 63.92 | 139.8 | |
| M18 | 20.84 | 41.35 | 38.03 | 58.52 | 73.72 | 143.6 | |
| M20 | 22.16 | 44.32 | 40.03 | 60.52 | 88.65 | 235.2 | |
| M25 | 28.02 | 55.59 | 51.62 | 19.55 | 98.21 | 583.7 |
| 產(chǎn)品名稱 | 圖片 | 型號 | 內(nèi)徑 | 壁厚 | 總高 |
| Product Name | Picture | Model | Inner Width | Diameter | Height |
| 圓孔鋁套 Aluminium Ferrule | 1 | 1.2 | 1 | 5 | |
| 1.2 | 1.6 | 1.2 | 5 | ||
| 1.5 | 2 | 1.5 | 5 | ||
| 2 | 2.5 | 1.2 | 5 | ||
| 2.5 | 3 | 1.5 | 5 | ||
| 3 | 3.5 | 1.8 | 6 | ||
| 4 | 4.8 | 1.8 | 8 | ||
| 5 | 5.8 | 1.8 | 9 | ||
| 6 | 6.3 | 2 | 10 | ||
| 8 | 9 | 2.2 | 13 | ||
| 10 | 10.8 | 3.2 | 28 | ||
| 12 | 13 | 4 | 32 |
